PVDF COATING
PVDF Coated Separator
A functional coated separator for electrode adhesion, electrolyte retention and high-voltage compatibility.
Coating chemistryWater-based PVDF
Application methodsSpray or gravure coating
Reference base films9, 12 and 16 μmRepresentative classes from supplied technical material
Key advantages.
PVDF surface functionality supports stronger electrode interaction and electrolyte management in suitable cell designs.
Stronger electrode adhesion
Improved electrolyte retention
High-voltage compatibility
Application-led coating selection
Technical specifications and applications.
Published ranges and representative configuration classes are used as an evaluation basis. Final values are confirmed by product grade, application and test method.
Coating chemistryWater-based PVDF
Application methodsSpray or gravure coating
Reference base films9, 12 and 16 μmRepresentative classes from supplied technical material

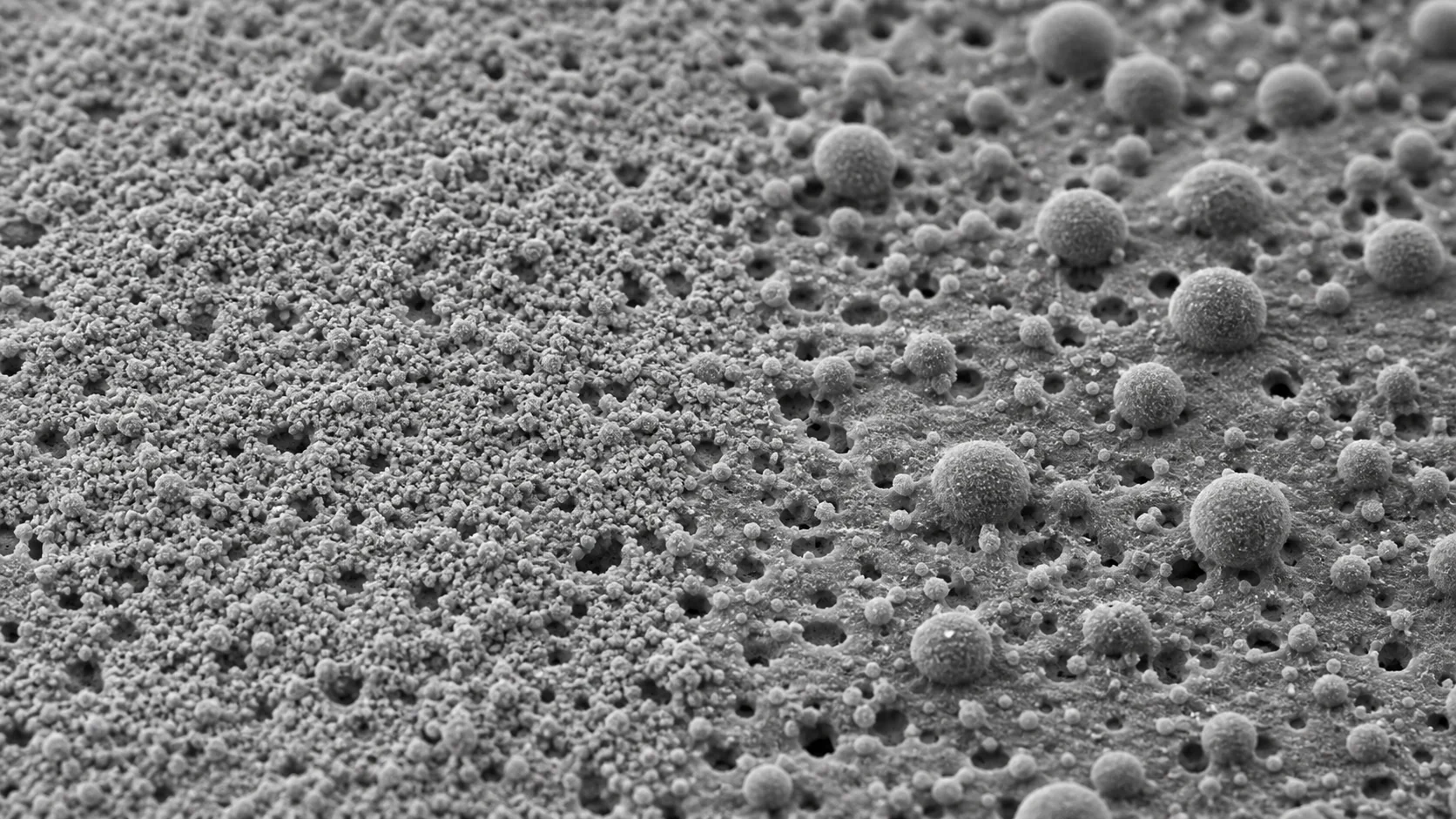

Surface morphologyDiscrete particles with wetting channels
Core controlsAir permeability and coating uniformity
Mechanical reviewMD/TD tensile and puncture
Thermal review105°C and 120°C directional shrinkage
Applications
- Electric vehicles
- Energy storage
- High-voltage cell platforms
Evaluate PVDF Coated Separator.
Share your application target, sample needs and expected demand with our technical team.
